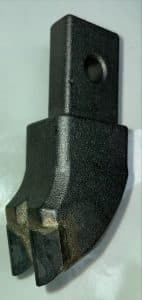

The metal castings are welded to the end of the cutting blades to attach the cutting teeth via a roll pin. This is the reduced radius version for smaller diameter cuts.
The Teeth Receiver Strip is welded to the cutter blade and acts as a docking point for the cutter teeth. It typically lasts for 1000 cuts in medium asphalt. It can be replaced by cutting it off and welding a new receiver in place.
The Gold Series Six Shooter Customer Package is created to give you everything you need to get started cutting and removing manhole frames. Our two decades of experience tells us that this package will get you quickly up to speed being safe, efficient, and profitable! None of us want to work harder than we have to. When you purchase and use this package, everyone will be commenting on your speed, safety, and efficiency.
Ships in two pallets:
Pallet #1: 49″L x 49″W x 41″H Weight: 1715 lbs
Pallet #2: 48″ L x 35″W x 34″H Weight: 485 lbs
Be sure to roll the auger motor forward before cutting
We ship all over the globe! Name(Required) First Last Email(Required) Phone(Required) Billing Address(Required) Street Address Address Line 2 City State / Province / Region ZIP
Mr. Manhole’s Water Valve Rebuild Kit includes all the items you need to cut, remove, and rebuild a water valve with speed and precision. Included in the package are the Underslung Arms and Water Valve Cutting Blades, enabling reduced-diameter cutting from 22″ to 34″ (when mounted on the Gold Series Cutter) and 28″ to 36″ (when mounted on the Platinum Series Cutter). You’ll also receive the hardware necessary to attach the blades to the Underslung Arms, as well as the Mr. Valve Centering Cone and Reducer Ring. Note that the Water Valve Rebuild Kit is only compatible with the Gold Series Cutter and the Platinum Series Cutter (only incompatible with the B-52 manhole cutter).
The Water Valve blade is compatible with all three cutters in the Mr. Manhole line up. The blade ships with all four cutting teeth installed. The blade has a cutting depth of 14″. The blade has an attractive blue finish for quick visual reference.
This blade is for the Gold Series Cutter and the B-52 Cutter. The blade ships complete with the four cutting teeth installed. The blade is capable of cutting up to 14” deep.
This is the blade and the cutting teeth that bolts directly on the arm of the Platinum Cutter.
This is the longer blade and the cutting teeth that bolts directly on the arm of the Platinum Cutter. It allows cutting to a 22″ depth.
This is the Extended Blade for the Gold series and the B-52 Cutters. The blade ships with four teeth installed. The Blade is capable of cutting up to 20″ deep.
