Spare Parts Repair Kit

Spare Parts Repair Kit

Part # A-MM0147
Weight: 11 lbs
Shipping Dimensions: 12"x9"x4"

$498.00

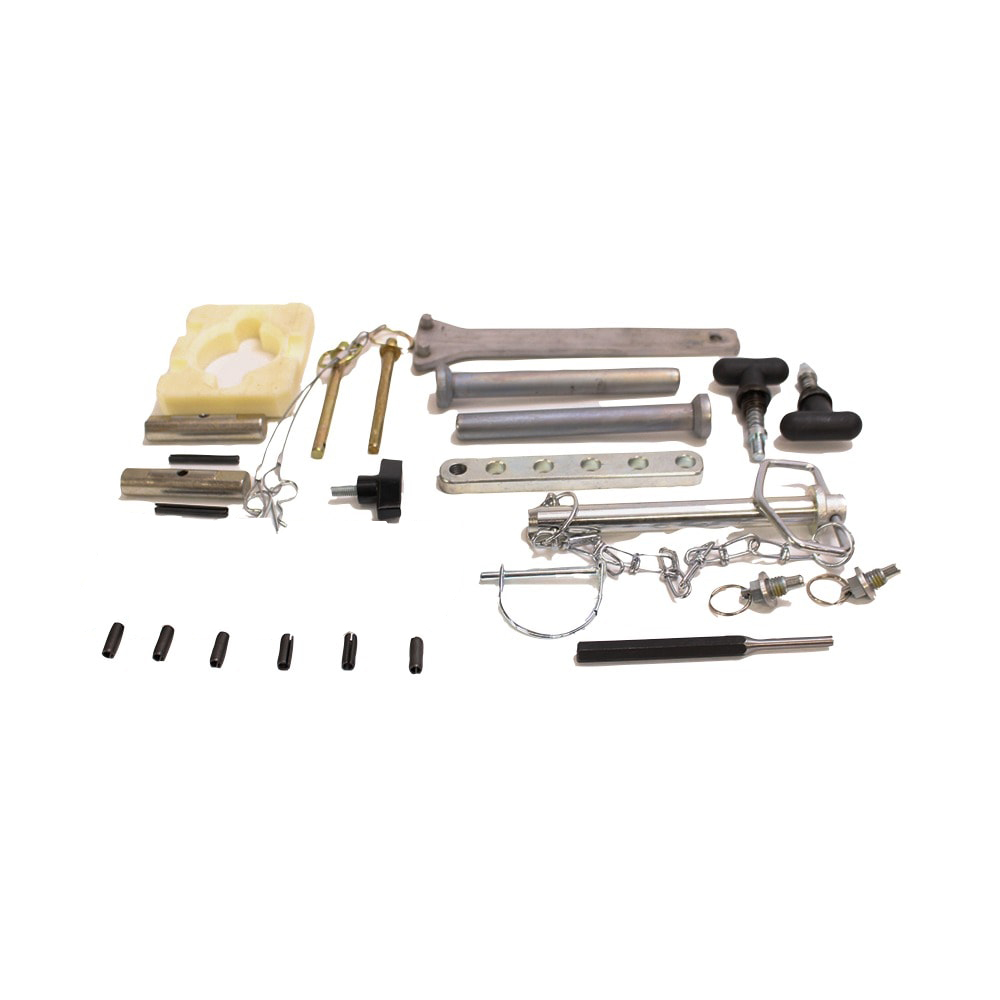

The Spare Parts Kit is a group of items specifically for field repairs on the Platinum Cutter. It includes many parts that might be difficult to purchase locally. This kit will keep your cutter functional if anything should break on the job.

By clicking on this item it will be added to your wish list. You can save or print your wish list at anytime by clicking the cart icon at the top of the site.

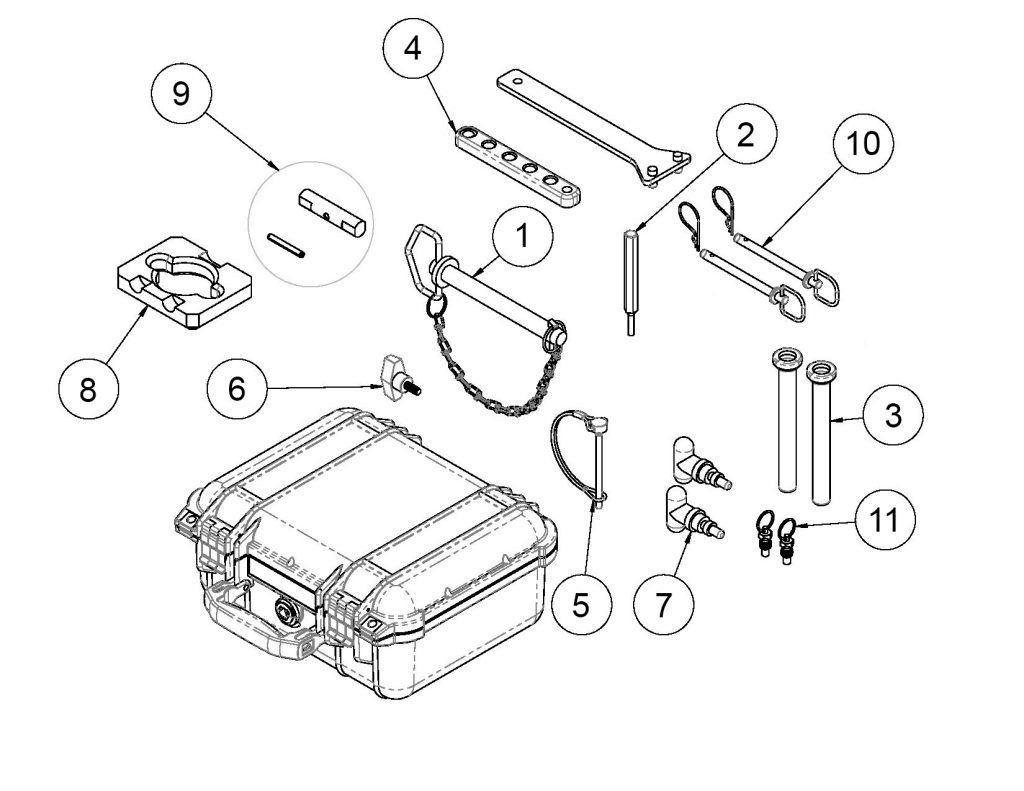

Schematic

Spare Parts Repair Kit

Replacement Parts

# Part # Description
1 P-MM0038 HITCH PIN WITH LYNCH PIN ATTACHED
2 P-MM0026 CARBIDE TOOTH AND ROLL PIN
3 P-MM0148 ¼” ROLL PIN PUNCH TOOL
4 P-MM0113 ARM RETAINER PIN
5 P-MM0149 PIN RETAINER STRAP - PLATINUM
6 P-MM0151 LOCKING PIN
7 P-MM0081 T-HANDLE – CASTING LIFTER & EASYSLOPE
8 P-MM0023 LEG PULL PIN
9 P-MM0051 KEYHOLE WEAR BLOCK
10 P-MM0032 SPRING PIN
11 P-MM0060 HITCH PIN W/LANYARD
12 P-MM0365 RETRACTABLE SPRING PLUNGER WITH PULL RING & LOCK ELEMENT
13 P-MM0030 GUIDE SHAFT LIFTING PIN
14 K-MM0029 GUIDE SHAFT LIFTING PIN & SPRING PIN KIT

Spare Parts Repair Kit

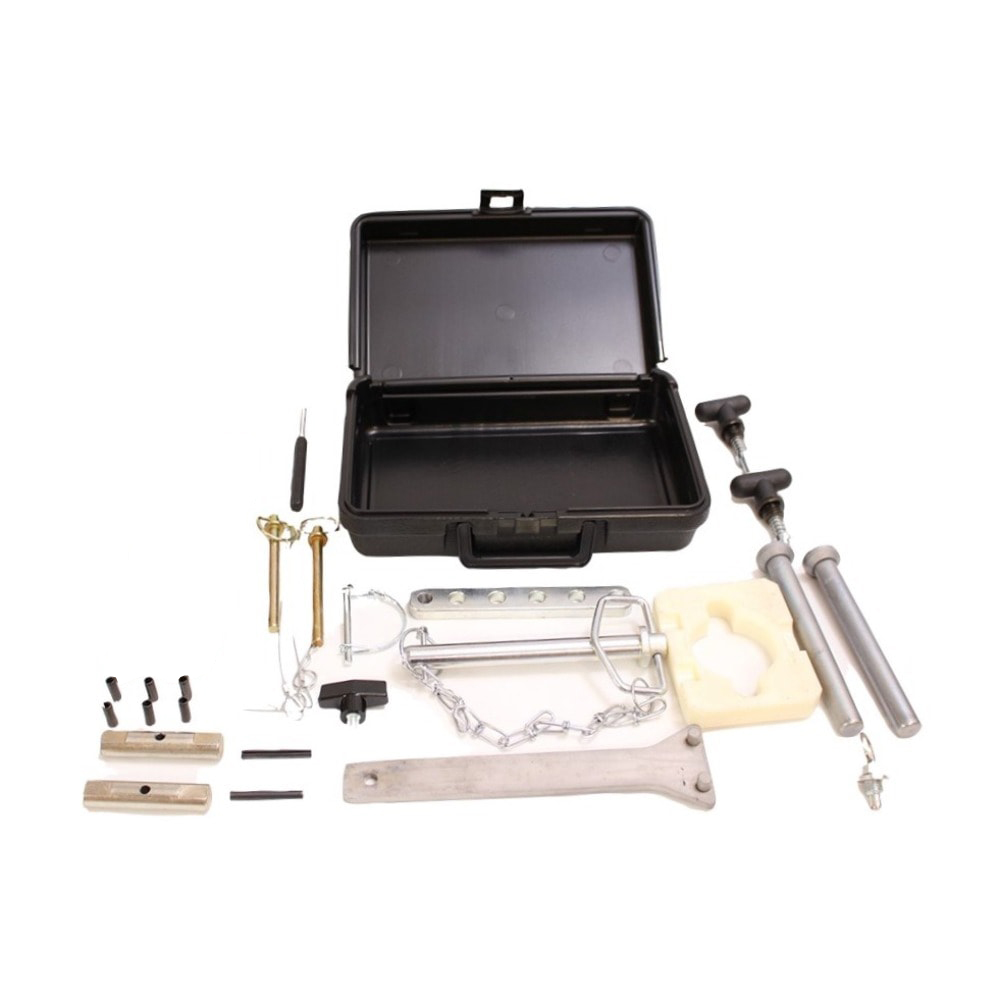

Take a look inside
