MM0098 Platinum Customer Package
Platinum Series Six Shooter Customer Package - Image 2

Platinum Series Six Shooter Customer Package

Part # K-MM0098
Weight: 2700 lbs

When you purchase equipment you want the very best!  You use your equipment hard every day.  You take the big jobs and you demand the best of the best!  The Platinum Customer Package is your choice.  It’s big, it’s heavy, it cuts way faster than any other cutter.  The Platinum cuts a bigger diameter (72″) and it cuts deeper (16-20″) than any other cutter, anywhere!  It is easy on motors thanks to the Easy-Drive Top that cushions motor impact.  The additional weight of the Platinum Cutter enables it to plow through tough cutting jobs! This Platinum Cutter is the only cutter that can run the Cookie Cutter “Centering System”  [Part# A-MM0602].  If you want big and bad, this is your package.  It really does have it all!

Ships in two pallets:
Pallet #1: 56″L x 56″W x 41″H    Weight:  2215 lbs
Pallet #2: 48″L x 35″W x 34″H    Weight:    485 lbs

Be sure to roll the auger motor forward before cutting

Call Toll Free With Questions: 833-242-2221​
Package Details
Skidloader Requirements
Replacement Parts
Register Product

Platinum Series Six Shooter designed for high-volume manhole frame adjustment

Our Six Shooter was specifically crafted for high volume manhole repairs, with increased power, increased speed, and increased durability that makes it tough enough to get the job done.

CONTACT SALES
MM0098 Platinum Customer Package
1

Platinum Series Cutter

Platinum Series Six Shooter Customer Package

1 of 11 2

Heavy Duty Auger Driver Model 40 2.5″ Hex Drive

Heavy Duty Auger Drive Model 40 2" Hex Drive

2 of 11 3

Standard Speedplate

Standard Speedplate

3 of 11 4

Safety Bar

Safety Bar

4 of 11 5

Spare Parts Repair Kit

Spare Parts Repair Kit

5 of 11 6

Casting Lifter Bracket – Platinum Series

Casting Lifter Bracket - Platinum Series

6 of 11 7

Extended Guide Shaft Platinum Series 51”

Extended Guide Shaft Gold Series & B-52 47"



7 of 11 8

Debris Shield

Debris Shield

8 of 11 9

Quick Change Teeth Gun Kit

Quick Change Teeth Gun Kit

9 of 11 10

Lifting Magnet

Lifting Magnet

10 of 11 11

Carbide Tooth and Roll Pin (Bag of 24)

Carbride Tooth and Roll Pin

11 of 11

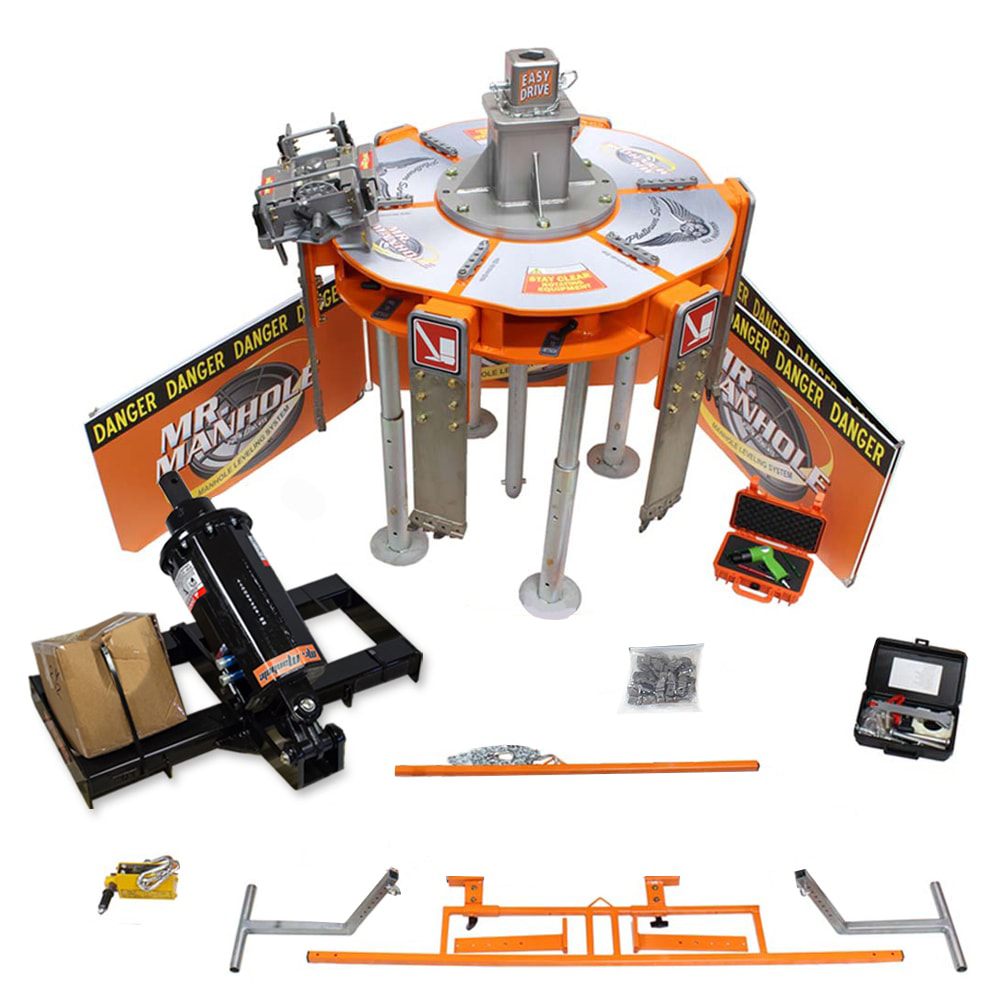

Platinum Customer Package

This package is the State of the Art for repairing manholes. It includes everything you need to remove manholes quickly for rebuilding.

  1. Platinum Series Six Shooter
  2. Heavy Duty Auger Drive Model 40 2.5” Hex Drive
  3. Standard Speedplate
  4. Safety Bar
  5. Spare Parts Repair Kit
  6. Casting Lifter Bracket – Platinum Series
  7. Extended Guide Shaft Platinum Series 51”
  8. Debris Shield
  9. Quick Change Teeth Gun Kit
  10. Lifting Magnet
  11. Carbide Tooth and Roll Pin (Bag of 24)

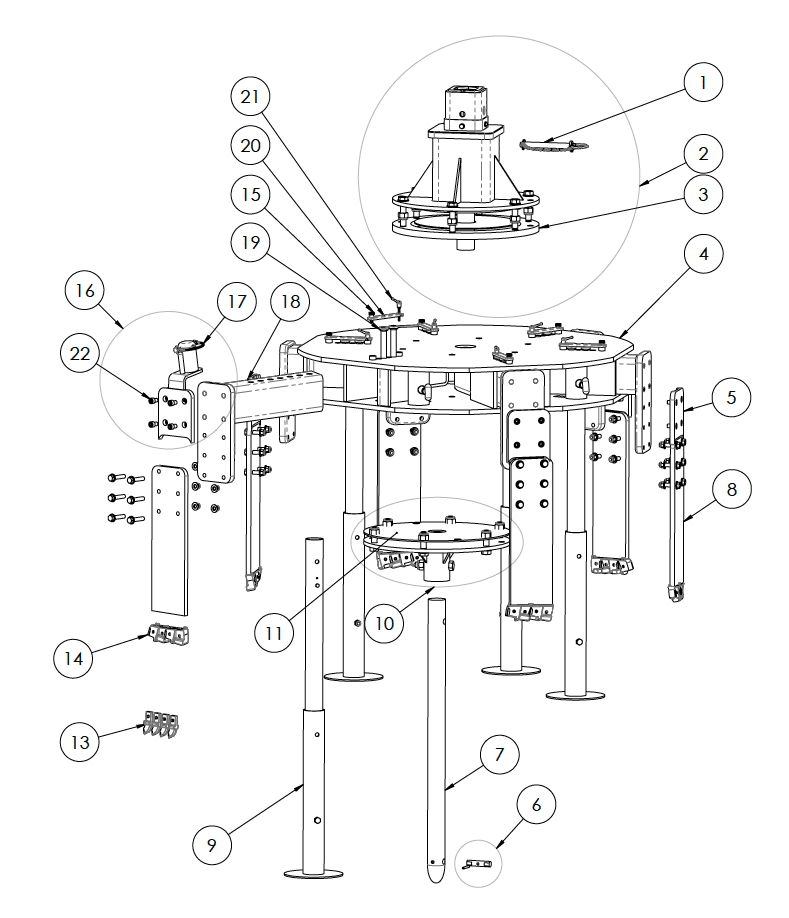

Schematic

Replacement Parts

# Part # Description
1 P-MM0038 HITCH PIN WITH LYNCH PIN ATTACHED
2 K-MM0369 EASY DRIVE TOP 2 ½” KIT – PLATINUM SERIES
3 P-MM0103 EASY DRIVE SPACER
4 K-MM0550 MAIN FRAME KIT - PLATINUM SERIES
5 K-MM0562 FILLER - PLATINUM KIT
6 K-MM0029 GUIDE SHAFT LIFTING PIN & SPRING PIN KIT
7 K-MM0512 STANDARD GUIDE SHAFT PLATINUM SERIES 39" KIT
8 A-MM0364 CUTTER BLADE - PLATINUM (TEETH INCLUDED)
9 A-MM0118 LEG - PLATINUM
10 K-MM0370 BOTTOM DRIVE - B-52, GOLD SERIES & PLATINUM SERIES
11 P-MM0122 HEX VIBRATION CUSHION
12 P-MM0023 LEG PULL PIN
13 P-MM0026 CARBIDE TOOTH AND ROLL PIN
14 P-MM0025 TEETH RECEIVER STRIP
15 S-MM0111 SS SHOULDER SCREW
16 K-MM0514 SPEEDPLATE TRANSPORT HUB -PLATINUM
17 P-MM0151 LOCKING PIN
18 P-MM0107 ARM - PLATINUM
19 P-MM0113 ARM RETAINER PIN
20 P-MM0149 PIN RETAINER STRAP - PLATINUM
21 P-MM0365 RETRACTABLE SPRING PLUNGER WITH PULL RING & LOCK ELEMENT
22 S-MM0106 HEX DRIVE BLACK OXIDE SCREW

Platinum Series Six Shooter

Features The Platinum Series Six Shooter

The Unit is designed to work with three amazing add-on packages: The Manhole Rebuild Package, the Water Valve Rebuild Package, and the Cookie Cutter Package. One machine, three amazing, time-saving functions! It’s the latest in manhole repair technology, and no other company in the world builds one like it.

  • Adjustability
  • Speed in cutting - Can remove a manhole in under 10 minutes with no labor.
  • Easy Drive Top protects drive motor from shock damage
  • Cuts a depth of 16” standard or 22” with optional equipment
  • The largest cutting diameter of any available cutter, up to 72″
  • A larger main frame for added durability in heavy use environments
  • Skid Steer minimum requirements: 20 gpm minimum flow, 2,500 lbs minimum lifting capacity.
CONTACT SALES
Platinum Series Six Shooter

Call Toll Free With Questions: 833-242-2221

Platinum Six Shooter Add-on Packages

Water Valve Rebuild Package

Water Valve Rebuild Package

The Water Valve Repair Package uses underslung arms to decrease the diameter of your Mr. Manhole tool to just 28”, perfect to repair and rebuild water valves and other small diameter cuts.
Click Here
Manhole Repair Package

Manhole Rebuild Package

The Rebuild Package contains all the tools you need adjust manhole frames the right way.
The Mr. Manhole series of manhole cutters does the job of cutting and removing the manhole lid from the road grade.

Click Here
Cookie Lifter

Cookie Lifter Package

The Cookie Lifter Package is designed to cut a 74” circle through the road at any point using only a 1.25” hole as a centering point. The system includes a mechanized lifting device to lift the “Cookie” from the road.
Click Here

We also offer the Platinum Series Six Shooter Base Package

Check It Out
