K-MM0002 Gold Series Six Shooter Customer Package
Gold Series Six Shooter Customer Package
Gold Series Six Shooter Customer Package

Gold Series Six Shooter Customer Package

Part # K-MM0002
Weight: 2200 lbs

The Gold Series Six Shooter Customer Package is created to give you everything you need to get started cutting and removing manhole frames. Our two decades of experience tells us that this package will get you quickly up to speed being safe, efficient, and profitable! None of us want to work harder than we have to. When you purchase and use this package, everyone will be commenting on your speed, safety, and efficiency.

Ships in two pallets:
Pallet #1: 49″L x 49″W x 41″H   Weight: 1715 lbs
Pallet #2: 48″ L x 35″W x 34″H  Weight:   485 lbs

Be sure to roll the auger motor forward before cutting

Call Toll Free With Questions: 833-242-2221​
Package Details
Skidloader Requirements
Replacement Parts
Register Product

Gold Series Six Shooter designed for high-volume manhole frame repair

The Gold Series Cutter is a sophisticated solution to your manhole repair needs. If you repair manholes or water valves this Cutter is for you.

CONTACT SALES
K-MM0002 Gold Series Six Shooter Customer Package
1

Gold Series Cutter

Gold Series Six Shooter

1 of 10 2

Heavy Duty Auger Driver Model 40 2.5″ Hex Drive

Heavy Duty Auger Drive Model 40 2" Hex Drive

2 of 10 3

Standard Speedplate

Standard Speedplate

3 of 10 4

Safety Bar

Safety Bar

4 of 10 5

Casting Lifter Bracket

Casting Lifter Bracket - Gold Series

5 of 10 6

Extended Guide Shaft Gold Series 47”

Extended Guide Shaft Gold Series & B-52 47

6 of 10 7

Debris Shield

Debris Shield

7 of 10 8

Quick Change Teeth Gun Kit

Quick Change Teeth Gun Kit

8 of 10 9

Lifting Magnet

Lifting Magnet

9 of 10 10

Carbide Tooth and Roll Pin (Bag of 24)

Carbride Tooth and Roll Pin

10 of 10

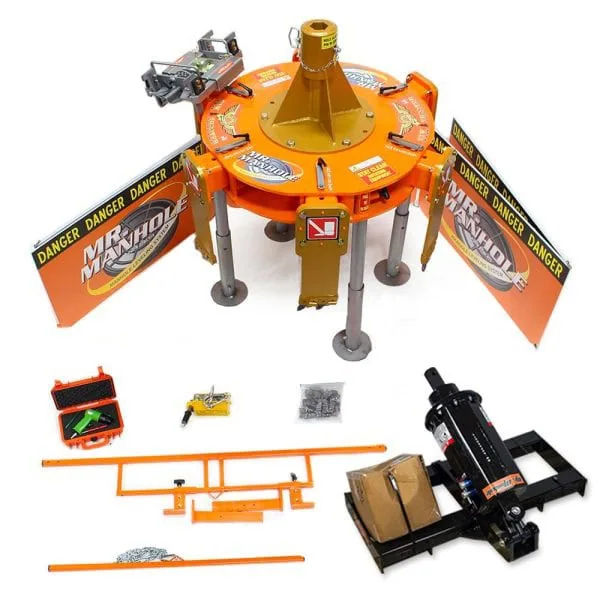

Gold Customer Package

This package is the State of the Art for repairing manholes. It includes everything you need to remove manholes quickly for rebuilding.

  1. Gold Series Six Shooter
  2. Heavy Duty Auger Drive Model 40 2.5” Hex Drive
  3. Standard Speedplate
  4. Safety Bar
  5. Casting Lifter Bracket
  6. Extended Guide Shaft Gold Series 47”
  7. Debris Shield
  8. Quick Change Teeth Gun Kit
  9. Lifting Magnet
  10. Carbide Tooth and Roll Pin (Bag of 24)

Gold Series Six Shooter

Features The Gold Series Six Shooter

The heavy duty Six Shooter is perfect for large contractors and municipalities. With proven results since 2002, we know the Six Shooter will make your job easier and safer, so you can repair and replace manholes in a fraction of the time required for traditional methods.

  • Easy cutter teeth replacement on the job site
  • Adjustable cutting diameter from 44″ to 60″ standard and down to 26″ & up to 72″ with optional add on’s
  • Weighing in at 1,200 lbs, the Six Shooter will take the work out of manhole repair
  • Skid Steer minimum requirements: 20 gpm minimum flow, 2,500 lbs minimum lifting capacity.
CONTACT SALES
Six Shooter Spinning

Schematic

diagram of A-MM0001 - base package

Replacement Parts

# Part # Description
1 K-MM0374 TOP DRIVE 2 ½” KIT – GOLD SERIES
2 P-MM0038 HITCH PIN WITH LYNCH PIN ATTACHED
3 K-MM0549 MAIN FRAME KIT – GOLD SERIES
4 K-MM0370 BOTTOM DRIVE – B-52, GOLD SERIES & PLATINUM SERIES
5 K-MM0029 GUIDE SHAFT LIFTING PIN & SPRING PIN KIT
6 K-MM0510 STANDARD GUIDE SHAFT GOLD SERIES & B-52 35”
7 A-MM0360 CUTTER BLADE – GOLD SERIES & B-52 (TEETH INCLUDED)
8 A-MM0013 LEG – GOLD SERIES OR B-52
9 P-MM0122 HEX VIBRATION CUSHION
10 P-MM0023 LEG PULL PIN
11 P-MM0026 CARBIDE TOOTH AND ROLL PIN
12 P-MM0025 TEETH RECEIVER STRIP
13 K-MM0560 SPEEDPLATE TRANSPORT HUB KIT – GOLD SERIES & B-52
14 P-MM0151 LOCKING PIN
15 P-MM0018 ARM – GOLD SERIES
16 P-MM0113 ARM RETAINER PIN
17 P-MM0361 PIN RETAINER STRAP – GOLD SERIES
18 P-MM0035 PIN STRAP SCREW HANDLE
19 B-MM0012 SS SOCKET SHOULDER BOLT

Gold Series Six Shooter Add-on Packages

Water Valve Rebuild Package

Water Valve Rebuild Package

The Water Valve Repair Package uses underslung arms to decrease the diameter of the cutter to just 22”, perfect to remove and rebuild water valves and to make other small diameter cuts.
Click Here
Manhole Repair Package

Manhole Rebuild Package

The Rebuild Package contains all the tools you need to adjust manhole frames the right way. This package works perfectly with the Mr. Manhole Material Package.

Click Here
27 in Materials Package

Material Package

The material used for manhole rebuilding is offered in two standard sizes, 27” and 30”(other sizes available by special order). The package will repair approximately 20 manholes.
Click Here

We also offer the Gold Series Six Shooter Base Package

Check It Out
